3D Compass Sensor Magnetometer Digital Electronic Compass With Actural High Accuracy (2D Calibration)
[DCM302B]
Rp5.650.000,-

Item specifics

is_customized:
Yes
Brand Name:
RION
Model Number:
DCM302B
Heading accuracy:
0.5~0.8deg
Tilt angle range:
+/-90deg
Tilt angle resolution:
0.1deg
Tilt angle accuracy:
0.1deg
Wide temperature:
-40 ~85C
Power supply:
DC5V (Customized 9-36V)
Protection:
IP67
Output interface:
RS232, RS485 or TTL optional
Product sie:
L60*W59*H29mm



Product Description

DCM302B High Accuracy 3D Orientation Sensor 3-Axes Marine Electronic Compass With High Accuracy 0.5deg Tilt Angle Range +/-90deg





General Description:

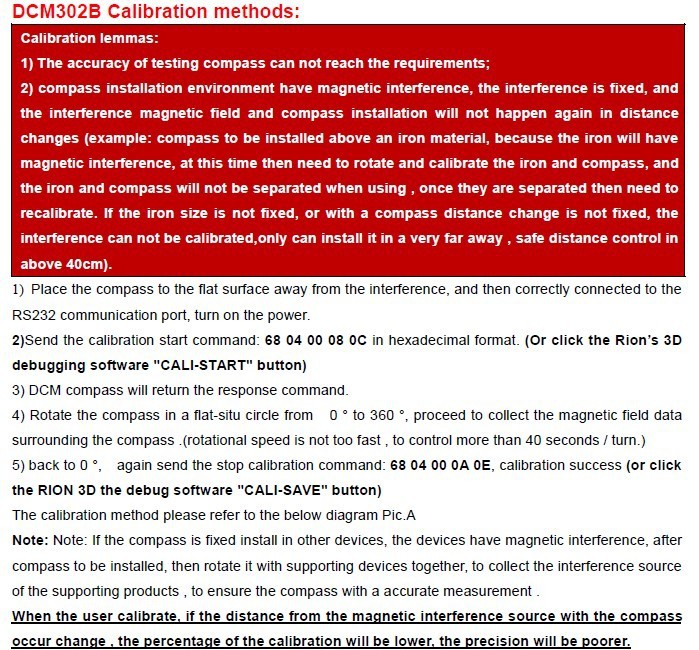

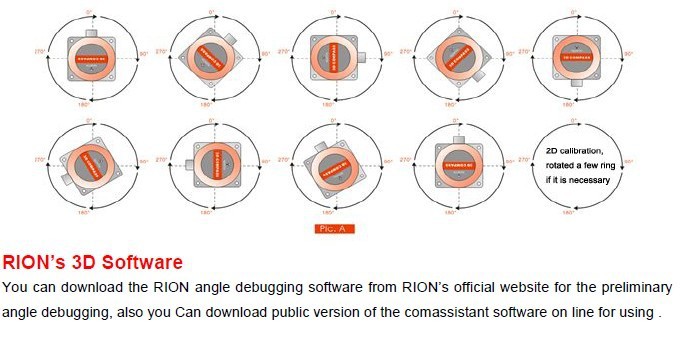

DCM302B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process.  Using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM302B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.

  DCM302B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.

Features:

  •  IP 67 protection class

  •  Standard RS232/RS485/TTL output interface

  •  DC 5V power supply

  •  With hard magnetic ,soft magnetic and angle compensation

  •  Size: L60×W59×H29mm

  •  Wide temperature : -40°C~+85°C

  •  Tilt angle accuracy: 0.1°

  •  Tilt angle resolution: 0.1°

  •  Tilt angle measuring range :±90°

  •  Heading accuracy:0.5°~0.8°

Application :

  • Satellite antenna search satellite

  • Marine navigation surveying and mapping

  • GPS integrated navigation

  • Antenna servo control

  • Gun emission system

  • Infrared imager

  • Laser range finder

  • Map for plotter

  • ROV underwater robot navigation

  • Oceanography measurement instruments

  • Special occasion robot

  • Unmanned aircraft



02 .jpg03-1 .jpg04 .jpg05 .jpg



 06 .jpg






Produk ini ditambahkan ke katalog kami pada Thursday 30 October, 2014.
